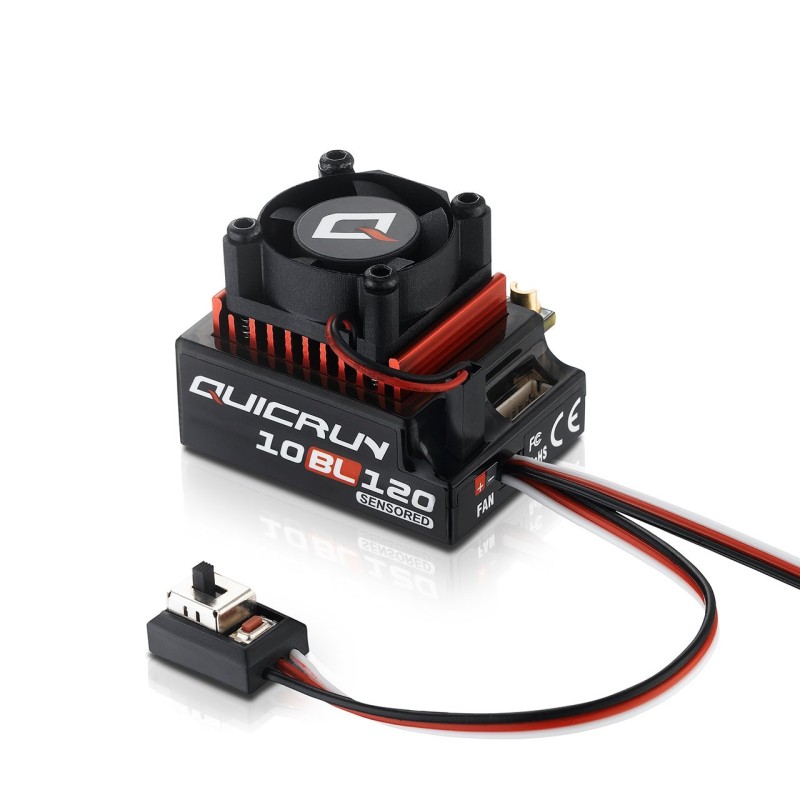

The second generation of the Quicrun 10BL120 ESC is a classic brushless solution for 1/10 cars such as touring cars, buggies and drifters. With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor. Hobbywing's QuicRun series offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses with the outstanding, well-known quality of Hobbywing products as well as the uncomplicated commissioning.
Features:
- More setting options than its predecessor (including turbo delay, turbo timing and boost timing)
- Improved BEC output with switch instead of linear mode
- Motor rotation direction freely selectable (CW or CCW)
- Top performance at a low price
- Compact design, suitable for a variety of chassis
- Ideal for many areas of application and competitions
- Various protective functions:
- Overheating protection
- Cutoff voltage
Technical Specifications:
| Type: |
Brushless, Sensored |
| Current (cont./peak): |
120A / 760A |
| Input Voltage: |
2-3S Lipo |
| BEC: |
6V / 7.4V @ 4A (Switch Mode) |
| Motor Types: |
Brushless Motors (with/without sensor) |
| Motor Limit: |
2S: >= 4.5T, 3650 Motor
3S: >= 10.5T, 3650 Motor |
| Fan: |
Yes, powered by the BEC |
| Programming: |
SET Button
LED Program Box
LCD Program Box (G2) |
| Dimensions: |
44 x 36.8 x 32.3mm |
| Weight: |
101.5g |
| Application: |
1/10 Touring, Buggy, Drift |
|
